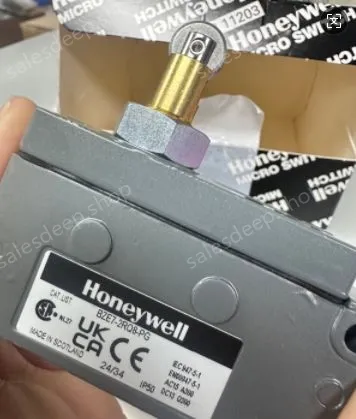

Honeywell BZE7-2RQ8-PG Limit Switch - Product Parameters
Category:Heavy-Duty Limit Switch
1. General Specifications
| Parameter | Specification |
| Series | Honeywell BZE Series |
| Model Number | BZE7-2RQ8-PG |
| Switch Type | Snap-Action (Slow-Make, Slow-Break) |
| Contact Configuration | 1NO / 1NC (1 Form C) |
| Electrical Rating | 10 A @ 600 VAC / 480 VAC |
| Electrical Life | 500,000 operations (at rated load) |
| Mechanical Life | 1,000,000+ operations |
| Operating Frequency | 300 cycles per minute (max) |
| Housing Material| Die-Cast Zinc, Chromium Plated |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |

2. Actuator Details
| Parameter | Specification |
| Actuator Type | Top Push, Roller Plunger |
| Actuator Code | 2RQ8|
| Operation Type | Linear movement, actuated by depressing the roller plunger. |
| Feature | The roller reduces friction and wear during contact with the machine part. |

3. Electrical Specifications
| Parameter | Specification |
| Contact Arrangement | Single Pole, Double Throw (SPDT) |
| Initial Contact Resistance | < 50 mΩ |
| Dielectric Strength | 1500 VAC for 1 minute (between live parts and ground) |
| Insulation Resistance | > 100 MΩ (at 500 VDC) |

4. Mechanical & Environmental Specifications
| Parameter | Specification |
| Terminal Connection | Screw Terminals |
| Conduit Entry | PG (Panzergewinde) thread. Standard size is PG 13.5. |
| Ingress Protection (IP) | IP67 (Dust-tight and protected against immersion in water up to 1m for 30 minutes). |
| Sealing | Oil-resistant and synthetic rubber seals. |

5. Force & Travel Specifications
| Parameter | Specification |
| Operating Force | Approximately 4.5 N (varies with actuator position) |
| Pre-Travel | The distance the plunger moves from its free position to the operating point. |
| Total Travel | The maximum distance the plunger can be depressed. ~5.6mm for this actuator type. |
| Overtravel| The travel beyond the operating point. |

6. Approvals & Certifications
cULus Listed (UL 508 and CSA C22.2 No. 14)
CE Compliant

Key Feature Summary:
Heavy-Duty Construction:Built for harsh industrial environments.
High Current Rating:Can switch loads up to 10A directly, often eliminating the need for an interposing relay.
IP67 Rating: Fully sealed against dust and temporary submersion, making it suitable for washdown applications (e.g., food & beverage, pharmaceutical).
Versatile Actuator: The top-push roller plunger (2RQ8) is ideal for applications where the actuating object approaches from directly above the switch.
European Conduit Standard: The PG thread is a metric standard commonly used in Europe and Asia. For North American NPT threads, the equivalent model would be BZE7-2RQ8-NPT .
